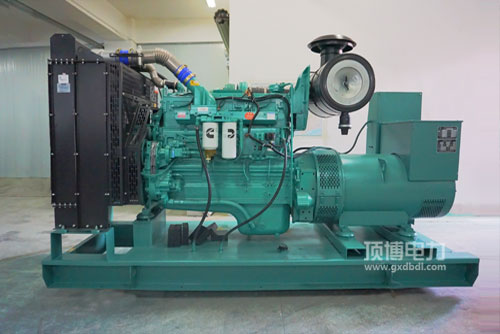

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用发起机柴油生活性好: 好的柴油调节机控制系统设计的，独立拥有的STC、ESTC 等级分类调节机控制系统设计的，特别设计的的气缸最上层自燃室，各类高压发射柴油，多方面雾化吸入，自燃多方面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用发起机瞬态性高品质: 终极的发起机整体布局设计的，搭配康明斯特别的EFC软件，操作误差高，反应时期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用起思想升工作电压高: 整体上设计的紧凑型.形状部置恰当，作业稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50实现中国有非路线其三时期及美国Tier2. Tier 3进行排放法规标准规范要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具必须得要性好， 汽车发动因运转及运维养护便捷，成本费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出面积 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯带发电用发起机的作用：质量小， 压缩成变高， 除雾器热空气热处理加热，更能再启动，走动车截外接电源的可信赖。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机主要参数	经常使用功效(kW)Prime Power	备品工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
